Toilet Paper Holder

Toilet Paper Holder[edit | edit source]

Project developed by jdmajors

Abstract[edit | edit source]

1. This is a helpful OSAT project because it will help anyone in the developing world keep any toilet paper off the ground where it could potentially get wet or dirty therefore this is a more sanitary and will waste less toilet paper.

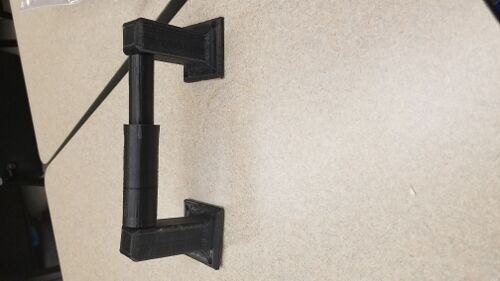

2. Picture of completed print using your printer



Bill of Materials[edit | edit source]

1. Provide a full BOM -- PLA Plastic, (https://www.mcmaster.com/1986k16)compression spring or something similar
   1. Upload and link to all source files from open source CAD (https://www.youmagine.com/designs/toilet-paper-holder-5-18) YouMagine link
   2. Upload and link to all STLs Same as the previous link

Tools needed[edit | edit source]

1. MOST Delta RepRap or similar RepRap 3-D printer

Skills and knowledge needed[edit | edit source]

• Basic 3D printer knowledge.

Technical Specifications and Assembly Instructions[edit | edit source]

1. Assemble the spring into the larger tube and then insert the smaller tube into the large tube making sure it slides freely but locks in with the small groove on the inside of the large tube. Make sure the two tubes slide freely then and rotate in the holders. Then Place the holders in the desired location Mark screw holes and then attach to the wall.
2. Print time estimate: 10 Hours
3. Assembly time estimate: 10 minutes
4. Including drawings or pictures of the device at stage of assembly at minimum.

Common Problems and Solutions[edit | edit source]

• Common problems: if you don't want to use support material make sure the tubes appear to be upright in the slicer otherwise they will not of as high of quality if they are laid flat.

Cost savings[edit | edit source]

1. $1-3 in plastic $1 Spring
2. Find a commercial equivalent, cite it and put the [1]
3. Total Savings of about $10 over commercial equivalent.

Benefited Internet Communities[edit | edit source]

• Name and add links to at least 5 using single brackets around [url name]

References[edit | edit source]

• No references were used.
