3D Printed Pediatric Female Forearm Bone Models[edit | edit source]
In a 2022 Danish study on 4,316 pediatric patients, 98% of pediatric distal forearm fractures are isolated fractures and the incidence of distal forearm fractures in females was 44% and with a slighter higher incidence observed on left (57%) versus right (42%) extremities.[10] The incidence of pediatric distal forearm fractures peaks in girls between the ages of 9 to 11 years, with the highest incidence at age 10 years. The mean physeal plate width for the radius and ulna for girls ages 9-12 years of age was 0.26 and 0.25 cm, respectively.[11] Thus, a total radial length corresponding to the mean radial length of healthy Caucasian girls ages 10 years (185.39 mm) and a physeal width of 0.255 cm was used in the design of our gender-specific pediatric left forearm simulators.[11][12]
The fracture subtypes were selected based on input and X-rays provided by Dr. Peter J. Snelling, FACEM, FRACP (PEM & Gen Paeds), CCPU, Emergency Physician, Gold Coast University Hospital, Southport, Queensland, Australia, and Founder of Sonar Group (www.sonar.org.au), email: peter.j.snelling@gmail.com. A greenstick fracture with cortical breach of the palmar aspect of the distal radius and concurrent buckling of the dorsal radius will be included because it was the most commonly missed fracture by Australian nurse practitioners in a 2022 ultrasound training study.[13]
3D Printing Software, Hardware, and Filament Specifications[edit | edit source]
All 4 requirements below must be met in order to digitally manufacture the 3D Printed Pediatric Female Forearm Bone Models.
- 3D Printer Type: Fused Filament Fabrication
- Minimum Build Plate Z Height: 190 mm
- Filament: Unexpired Polylactic Acid (PLA) Fresh Out of the Sealed Packaging
- Filament Colour: White and Black PLA
3D Print White PLA Models for Unblinded Training[edit | edit source]
Download 3D Model STL Files For Slicing[edit | edit source]
Download the three 3D files (.STL) in each table below to input the required print settings to create the print files (.GCODE) for other 3D printers.
Table 1. No Fracture (Model #1 and #2)
| Model Number | Download STL File | Used Filament | Revision Date |
|---|---|---|---|
| 1 | Click on this link and click on "Model_1_-_Female_-29-Oct-2022_version.stl" to download the file | 39 grams | October 29, 2022 |
| 2 | Click on this link and click on "Model_2_-_Female_-29-Oct-2022_version.stl" to download the file | 25 grams | October 29, 2022 |
| Models 1 + 2 Connectors | Click on this link and click on "Models 1 + 2 Two_Connectors_-2-Nov-2022_version.stl" to download the file | 0.4 grams | November 2, 2022 |
Table 2. Buckle (Torus) Fracture of the Dorsal Distal Radius and Ulna (Model #3 and #4)
| Model Number | Download STL File | Used Filament | Revision Date |
|---|---|---|---|
| 3 | Click on this link and click on "Model_3_-_Female_-20-Feb-2023_version.stl" to download the file | 47 grams | February 20, 2023 |
| 4 | Click on this link and click on "Model_4_-_Female_-2-Nov-2022_version.stl" to download the file | 26 grams | November 2, 2022 |
| Models 3 + 4 Connectors | Click on this link and click on "Models 3 + 4 Two_Connectors_-2-Nov-2022_version.stl" to download the file | 0.4 grams | November 2, 2022 |
Table 3. Incomplete (Greenstick) Fracture of the Dorsal Distal Radius (Model #5 and #6)
| Model Number | Download STL File | Used Filament | Revision Date |
|---|---|---|---|
| 5 | Click on this link and click on "Model_5_-_Female_-3-Nov-2022_version.stl" to download the file | 44 grams | November 3, 2022 |
| 6 | Click on this link and click on "Model_6_-_Female_-5-Nov-2022_version.stl" to download the file | 32 grams | November 5, 2022 |
| Models 5 + 6 Connectors | Click on this link and click on "Models 5 + 6 Two_Connectors_-3-Nov-2022_version.stl" to download the file | 0.4 grams | November 3, 2022 |
Input Required Print Settings[edit | edit source]
_1-6.jpg)
Please pay attention to and input all the required settings below to ensure the bone models are printed properly and display the required visual, tactile, and acoustic fidelity for orthopedic surgical simulation training.
- Slicing Program: use program designed for your 3D printer (i.e., use Prusa Slicer for a Prusa i3MK3S)
- Filament Material: **white PLA at original default settings** (if you have previously modified any values from the 3D slicer program's default settings for PLA filament, please change these values back to the default settings by clicking on the circular arrow to the left of each modified setting)
- Layer Height: 0.20 mm or less
- Infill: original default setting (not 0%)
- Support: None (click here for image)
- Build Plate Adhesion Type: no raft (click here for image)
- Model Orientation: flat surface (i.e., square base) of model lays flat on build plate
3D Print Black PLA Models for Blinded Training[edit | edit source]
Download 3D Model STL Files For Slicing[edit | edit source]
Download the 3D files (.STL) in the tables below to input the required print settings to create the print files (.GCODE) for other 3D printers.
Table 4. Incomplete (Greenstick) Fracture of the Dorsal Distal Radius (Model #5 and #6)
| Model Number | Download STL File | Used Filament | Revision Date |
|---|---|---|---|
| 5 | Click on this link and click on "Model_5_-_Female_-3-Nov-2022_version.stl" to download the file | 44 grams | November 3, 2022 |
| 6 | Click on this link and click on "Model_6_-_Female_-5-Nov-2022_version.stl" to download the file | 32 grams | November 5, 2022 |
| Models 5 + 6 Connectors | Click on this link and click on "Models 5 + 6 Two_Connectors_-3-Nov-2022_version.stl" to download the file | 0.4 grams | November 3, 2022 |
Table 5. Buckle (Torus) Fracture of the Volar Distal Radius (Model #7 and #8)
| Model Number | Download STL File | Used Filament | Revision Date |
|---|---|---|---|
| 7 | Click on this link and click on "Model_7_-_Female_-2-Nov-2022_version.stl" to download the file | 48 grams | November 2, 2022 |
| 8 | Click on this link and click on "Model_8_-_Female_-5-Nov-2022_version.stl" to download the file | 32 grams | November 5, 2022 |
| Models 7 + 8 Connectors | Click on this link and click on "Models 7 + 8 Two_Connectors_-2-Nov-2022_version.stl" to download the file | 0.2 grams | November 2, 2022 |
Table 6. Incomplete (Greenstick) Fracture of the Volar Distal Radius (Model #9 and #10)
| Model Number | Download STL File | Used Filament | Revision Date |
|---|---|---|---|
| 9 | Click on this link and click on "Model_9_-_Female_-3-Nov-2022_version.stl" to download the file | 45 grams | November 3, 2022 |
| 10 | Click on this link and click on "Model_10_-_Female_-5-Nov-2022_version.stl" to download the file | 32 grams | November 5, 2022 |
| Models 9 + 10 Connectors | Click on this link and click on "Models 9 + 10 Two_Connectors_-3-Nov-2022_version.stl" to download the file | 0.4 grams | November 3, 2022 |
Input Required Print Settings[edit | edit source]

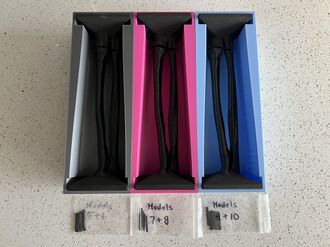

_5-10.jpg)
Please pay attention to and input all the required settings below to ensure the bone models are printed properly and display the required visual, tactile, and acoustic fidelity for orthopedic surgical simulation training.
- Slicing Program: use program designed for your 3D printer (i.e., use Prusa Slicer for a Prusa i3MK3S)
- Filament Material: **black PLA at original default settings** (if you have previously modified any values from the 3D slicer program's default settings for PLA filament, please change these values back to the default settings by clicking on the circular arrow to the left of each modified setting)
- Layer Height: 0.20 mm or less
- Infill: original default setting (not 0%)
- Support: None (click here for image)
- Build Plate Adhesion Type: no raft (click here for image)
- Model Orientation: flat surface (i.e., square base) of model lays flat on build plate

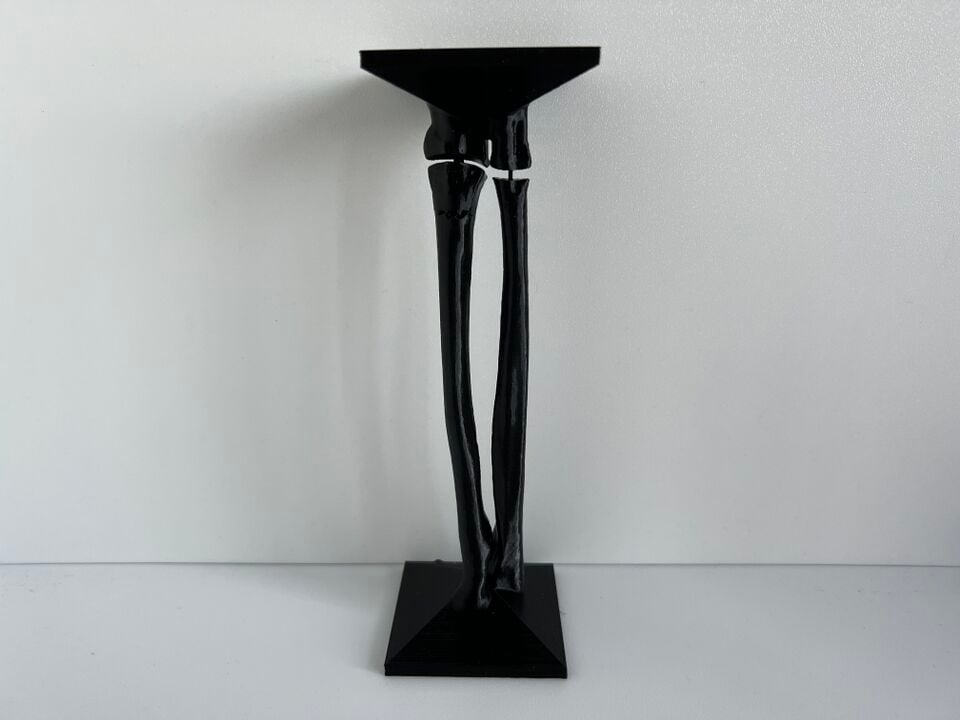

Assemble Pediatric Female Forearm Bone Models[edit | edit source]
Each pair of connectors is specifically designed for its corresponding numbered pair of bone models (i.e., only Models 1 + 2 Connectors should be inserted into Models 1 + 2).
Insert a male connector into the female part of the radius of the proximal forearm.
Insert a male connector into the female part of the ulna of the proximal forearm.
Align the female part of the radius of the distal forearm over the male connector of the radius of the proximal forearm to connect the radius of the distal forearm to the proximal forearm. Align the female part of the ulna of the distal forearm over the male connector of the ulna of the proximal forearm to connect the ulna of the distal forearm to the proximal forearm.
Acknowledgements[edit | edit source]
This work is funded by a grant from the Intuitive Foundation. Any research, findings, conclusions, or recommendations expressed in this work are those of the author(s), and not of the Intuitive Foundation.
