This rod alarm system was designed to detect losing rod of the MOST Delta - Athena during printing.
Design and Printing[edit | edit source]
Design[edit | edit source]
OpenSCAD was utilized for Hook and box modeling operations. The MOST-Athena GitHub file repository is located here. The Hook and box assembly were imported into OpenSCAD and the part was designed to accommodate the geometrical constraints of the parts provided to MY4777.
rod box is edited from Battery box for AA cells http://www.thingiverse.com/thing:331394/#files

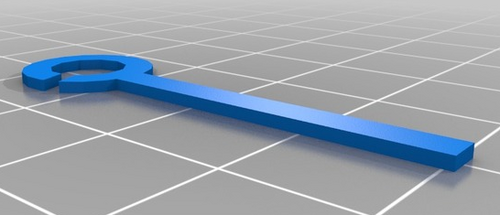

Hook model
Printing[edit | edit source]
The stiffness of the component is driven by the infill percentage. Adjust as necessary to achieve your desired characteristics.
Print Parameters Utilized for Hook and Box:
- Layer Thickness: 0.2mm
- Skin Thickness: 1.0 mm
- Top/Bottom Thickness: 1.0 mm
- Temperature: 180C
- Speed: 30 mm/s
- Flow: 100%
- Infill: 50%
Installation[edit | edit source]
The model is designed to add onto the end effector. Print out Hook qty. 6 and box qty. 3 of the STL and install as shown below.
| Description | Count |
|---|---|
| window and door Alarm from Dollar Tree | 1 |
| Rod box | 3 |
| Rod arm | 6 |
| stainless ties 11" | 3 |
| plastic ties 6" (2.5mm x 150mm) | 3 |
| red electric wire 20 gauge for negative side | 70 cm |
| blck electric wire 20 gauge for positive side | 70 cm |
| Electric Wire Stripper Cutter Crimper |
| Wide Cutter Diagonal Cutting Plier Wire Cutter |
| lineman pliers |
-
Six Rod arm and three Rod box printed part.
-
Six 1.5 cm wire (three for each red and black) and six 6 cm wire (three for each red and black)
-
Six 4 cm stainless and folding them
-
Put folding stainless into Rod box
-
Solder 1.5 cm red and black electric wire for each side into Rod box
-
Solder 4 cm red and black electric wire to connect two Rod bow together
-
Cut off the wire that connect to the positive of window and door alarm
-
Solder 50 cm red and black electric wire to the positive of window and door alarm
-
Solder another side of 50 cm red and black electric wire to the end of Rod box
-
Fully Installed.
Video[edit | edit source]
Link to Files[edit | edit source]
The file repository is located on Thingiverse [1]
