Final Sound Garden Design

Abstract[edit]

The purpose of the Sound Garden is to demonstrate to the user the physical relationships between wavelength and sound in a safe, interactive, and understandable way. The Sound Garden satisfies the weighted criteria specified by the client for building a PVC xylophone-like musical exhibit. Designed by The Engineers That Could, The Sound Garden is a musical addition to the Redwood Discovery Museum's collection of wave-related exhibits. The design is a fun, appealing way for museum-goers of all ages learn about the physics of the sound. The Engineers designed the project for their Engineering 215 - Introduction to Design class at Humboldt State University.

Background[edit]

Ken Pinkerton from the Redwood Discovery Museum in Eureka, CA asked for an exhibit that will educate kids about the physical nature of sound.

Problem statement and criteria[edit]

The Redwood Discovery Museum needed a new musical exhibit to demonstrate the relationships between physics and sound. The objective of the Sound Garden project was to sustainably create and implement a new exhibit that was safe, educational, and appealed to all ages.

Description of final project[edit]

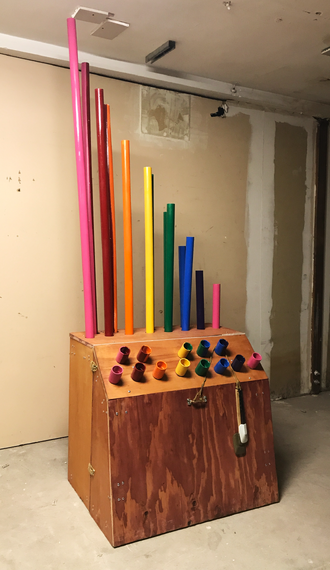

The Sound Garden is an instrument that displays the relationships between physics and sound. The exhibit uses varying pipe length in order to achieve desired notes. Re-purposed rubber spatulas are used as playing mallets. The display can be split in half for easy transport, and can be secured together with brass latches.

Costs[edit]

Quantity Material Source Cost ($) Total ($)
1 Schedule 40 1-1/4" PVC Pipe Pierson Hardware 5.99 5.99
49 Schedule 40 1-1/4" PVC - 45 degree align="right"| 1.29 63.21
13 Schedule 40 1-1/4" PVC - 90 degree align="right"| 1.29 16.77
13 Schedule 40 1-1/4" PVC connectors - Straight align="right"| 0.69 8.97
2 10-24 x1-1/4" Truss screws (100 ct.) align="right"| 7.99 15.98
2 10-24 x1-1/4" Nuts (100 ct.) Pierson Hardware 2 5.79
1 Washers (100 ct.) Pierson Hardware 2.99 2.99
4 L-Brackets Pierson Hardware 0.89 3.56
4 Draw Catches Pierson Hardware 3.49 13.96
4 Hitch Pins Pierson Hardware 0.40 1.60
1 Primer Pierson Hardware 10.34 10.34
8 Paint Pierson Hardware 4.49 35.92
1 Primer Pierson Hardware 10.34 10.34
8 Paint Pierson Hardware 4.49
Total Cost $246.60

Testing Results[edit]

The Sound Garden is currently on display at the Redwood Discovery Museum. The staff is excited to officially open the exhibit on Tuesday December 5th, 2017.

How to build[edit]

Use Template:How_to


Maintenance[edit]

With proper maintenance, the Sound Garden is expected to last 20 years.

Schedule[edit]

This is when to maintain what.

Daily
  • Visually inspect exhibit for loose pipes or damage


Weekly
  • Inspect playing caps, mallets, and draw catches for damage


Monthly
  • check for loose bolts


Yearly
  • Inspect tubes and frame for wear



Every 10 years
  • Re-coat stain


Instructions[edit]

This is how to maintain. The step by step how to template {{How to}} is most likely best for this part.

How to Do Something
ImageStep
Backpack frame bike trailer Step 1 : Assess the display for loose parts.
Aleiha's parabolic solar cooker Step 2 : Secure loose parts.
