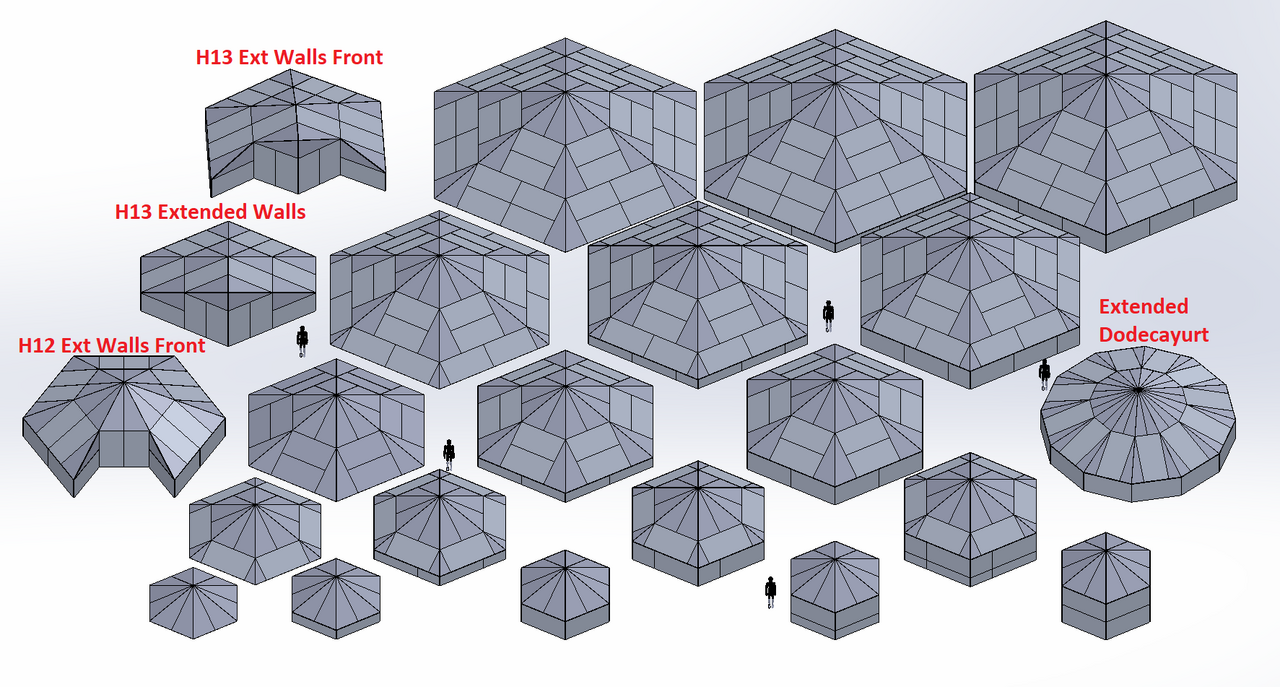

Winged Designs are an expansion on the Cone Designs, allowing new architectures to be built and new designs to be made. They are infinitely scaleable, though as larger designs will need supports. As seen with the Extended Dodecayurt, perhaps increasing the number of sides would help with self supporting.
Technical Name | H Name | Total sheets | Nickname | Build Score | #People | Sqft | Footprint Ø (ft) | Walls (ft) | Height (ft) | Waste | Notes |
---|---|---|---|---|---|---|---|---|---|---|---|
4ft Winged Short Hexayurt | H18 | 18 | 4ft Winged Short Hexayurt | 14.22 | 6 | 374.10 | 24.00 | 2.00 | 8.00 | No | |
??? | H21.5 | 21.5 | H12 Extended Walls | 2.34 | 8 | 326.00 | 24.17 | 4.00 | 10.00 | Yes | |
4ft Winged Hexayurt | H22.5 | 22.5 | 4ft Winged Hexayurt | 35.56 | 6 | 374.10 | 24.00 | 4.00 | 10.00 | No | |
8ft Winged Hexacone | H24 | 24 | 8ft Winged Hexacone | 29.97 | 6 | 665.10 | 32.00 | Slope | 8.00 | No | |
??? | H25.5 | 25.5 | H12 Extended Walls front | 1.17 | 8 | 339.00 | 24.17 | 4.00 | 10.00 | Yes | |
4ft Winged Lifted Hexayurt | H27 | 27 | 4ft Winged Lifted Hexayurt | 18.97 | 6 | 374.10 | 24.00 | 6.00 | 12.00 | No | |
??? | H30 | 30 | H13 Extended Walls | 14.64 | 10 | 443.00 | 29.17 | 4.00 | 12.00 | No | |
8ft Winged Short Hexayurt | H30 | 30 | 8ft Winged Short Hexayurt | 11.66 | 8 | 665.10 | 32.00 | 2.00 | 10.00 | No | |
??? | H34 | 34 | H13 Extended Walls front | 7.98 | 10 | 497.50 | 32.17 | 4.00 | 12.00 | No | |
??? | H36 | 36 | H12 Ext Walls Front Tall | 14.57 | 12 | 581.00 | 32.17 | 4.00 | 12.00 | No | |
8ft Winged Dodecayurt | H36 | 36 | Extended Dodecayurt | 6.07 | 6 | 716.55 | 31.25 | 4.00 | 9.75 | No | |
8ft Winged Hexayurt | H36 | 36 | 8ft Winged Hexayurt | 16.65 | 8 | 665.10 | 32.00 | 4.00 | 12.00 | No | |
12ft Winged Hexacone | H37.5 | 37.5 | 12ft Winged Hexacone | 21.95 | 8 | 1039.20 | 40.00 | Slope | 10.00 | No | |
8ft Winged Lifted Hexayurt | H42 | 42 | 8ft Winged Lifted Hexayurt | 13.53 | 8 | 665.10 | 32.00 | 6.00 | 14.00 | No | |
12ft Winged Short Hexayurt | H45 | 45 | 12ft Winged Short Hexayurt | 27.88 | 10 | 1039.20 | 40.00 | 2.00 | 12.00 | No | |
12ft Winged Hexayurt | H52.5 | 52.5 | 12ft Winged Hexayurt | 26.13 | 10 | 1039.20 | 40.00 | 4.00 | 14.00 | No | |
16ft Winged Hexacone | H54 | 54 | 16ft Winged Hexacone | 70.03 | 12 | 1496.50 | 48.00 | Slope | 12.00 | No | |
16ft Winged Short Hexayurt | H63 | 63 | 16ft Winged Short Hexayurt | 44.63 | 12 | 1496.50 | 48.00 | 2.00 | 14.00 | No | |
16ft Winged Hexayurt | H72 | 72 | 16ft Winged Hexayurt | 89.26 | 12 | 1496.50 | 48.00 | 4.00 | 16.00 | No |
Wall Modifications[edit | edit source]
As you can see with the H12 and H13 Extended Walls designs, there are different ways to add the wings to the walls without preserving symmetry. These modifications are applicable to all scale designs. Below are details:
