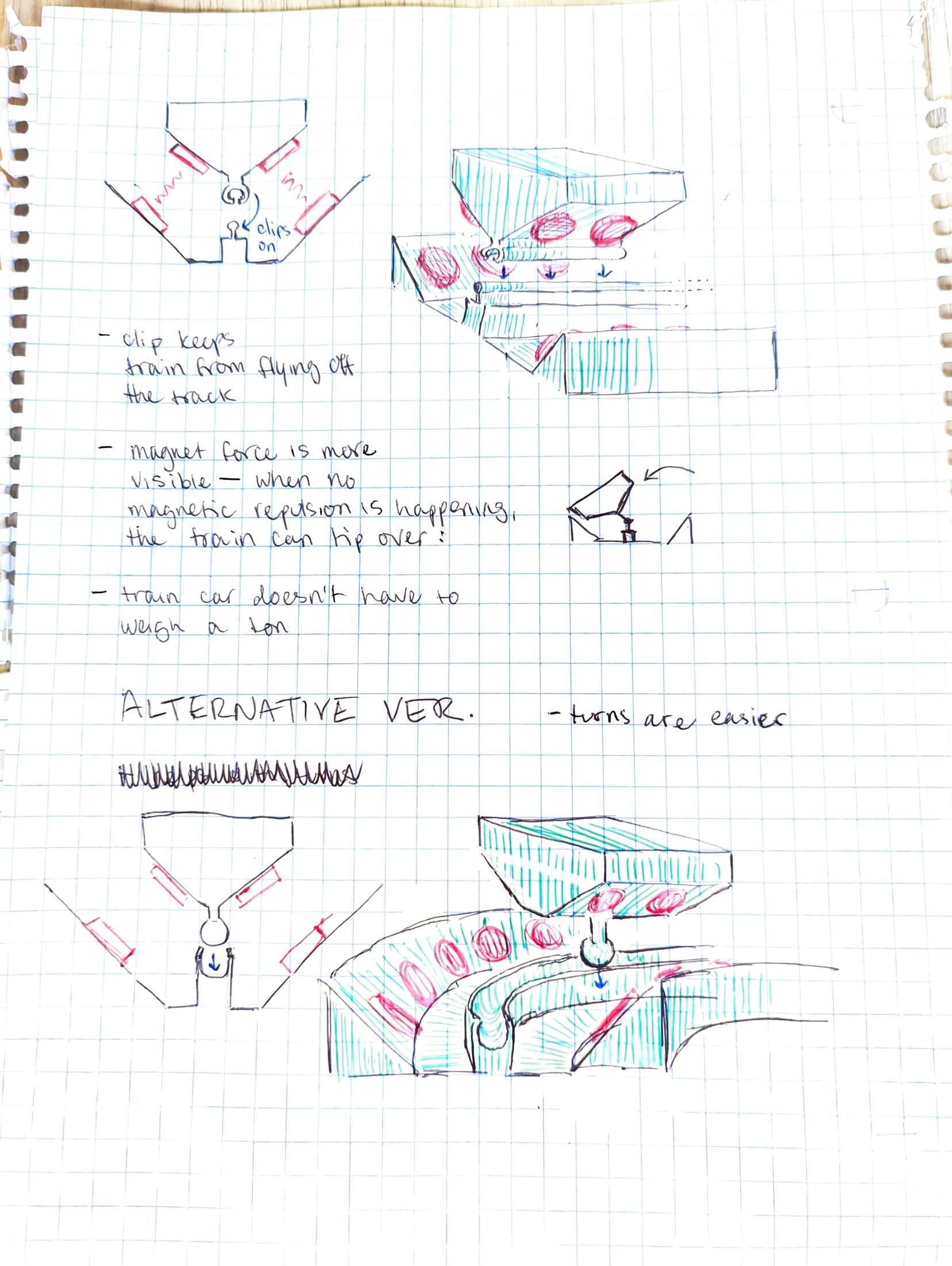

Shown [here] are the concept drawings for the second functional version of the Mag Lev prototype. The problems from the previous version that this new prototype hopes to improve were the visibility issue for the magnetic forces, as well as preemptively solve issues that had been identified with turning corners on the train track. Some testing for a parallel circuit of electromagnets was also involved at this stage, as shown [here].
