Derry, Logan - Drone Project

Project data

OKH Manifest	Download

Replace this for an brief description of the project, its purpose, motivation, status, background, etc.

Initial Research[edit | edit source]

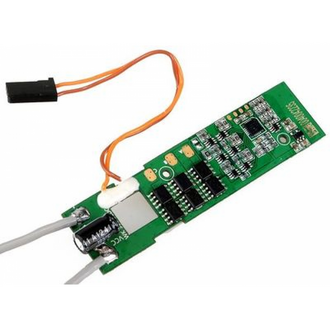

DJI ESC

• DJI uses a System on a chip solution - All components are on a single PCB, making it really small and light.
  • Find more that are cheap, in case the current ones are hard to implement, or break.

•

  Has a back-feed that tells the main controller where the rotors are in space, as well as temperature, angle and Voltage.

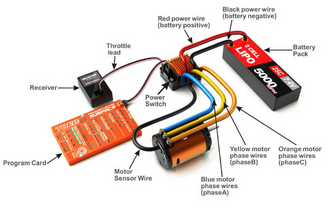

What is an ESC?

ESC Video

• Controls the speed of a 3 phase brushless motor.

•

  Three main parts
  • Voltage Regulator
  • Processor
  • Switching

Subsection[edit | edit source]

Insert lists, images, galleries, tables, references and templates to go to the next level!
