Athena Idler End Assembly

From Appropedia
Jump to: navigation, search


Materials and Tools[edit]

Idler end materials

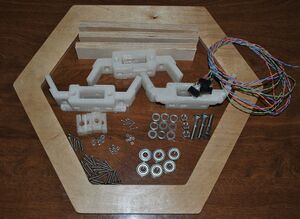

Idler end materials. Soldered limit switch, M2 screws and washers and 340mm round plywood not pictured.
Materials
Description Count
Printed idler end 3
Printed Clamp 6
42mm x 210mm linking board 3
#6 x 3/4" sheet metal screw 18
Prepared limit switch 3
M2 x 12mm screw 6
M2 flat washer 6
M3 x 16mm screw 6
M3 washer 6
M3 nut 6
M8 x 40mm bolt 3
M8 nut 3
M8 flat washer 9
608zz bearing 6
2-part plastic epoxy
Necessary tools

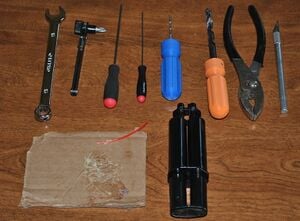

Necessary tools for Idler end. Note that a stubby screwdriver will be required if a right angle driver is unavailable.
Tools
2.5mm hex key
Precision knife
13mm wrench
Small blade screwdriver
3mm drill bit and holder
Screwdriver (right-angle driver preferred)
Epoxy stirring stick
Epoxy mixing pallet

Note[edit]

  • DO NOT REAM the small holes in the rectangular pockets where the limit switches are mounted (see last steps in this page for clarification). The screws will themselves form threads in the plastic (plastiform threads) when you attach the switches to the idler ends.
  • The limit switches are held in place with both screws and epoxy. It's imperative that the limit switches do not move once attached to the idler ends. The printer will not home to the same position if switches are loose, causing endless problems with printer calibration.

Procedure[edit]

  1. Opening the guide rod hole.
    Bore through the bar clamp with a 3mm drill bit.
    Clean the idler ends with a sharp knife, removing any protrusions from the faces in the interior of the idler box. Use 8mm and 3mm drill bits to ream all of the holes. Use a M3 drill bit to bore the hole all the way through the bar clamps. Clear all protrusions from the linking board mount tabs. Do not bore the 8mm holes all the way through - just ream the hole with the drill bit!
  2. Putting the nut in the bar clamp.
    Put an M3 nut in the nut trap in the bar clamp and push it in with a pair of pliers.
  3. Inserting the bar clamp.
    Insert the bar clamps in the idler end.
  4. Fixing the bar clamp.
    Put an M3 washer on an M3 x 16 screw for every bar clamp and insert it in the idler end. Do not tighten the screw at all, because the guide rod first needs to be inserted.
  5. The idler is best assembled in steps, inserting a piece, advancing the bolt and then inserting the next piece. The order of items on the bolt, starting from the hex head will be idler end-washer-608zz-608zz-washer-idler end-washer-nut:
    1. Start the bolt through an idler end.
      Start the M8 x 40mm bolt through the idler end from the side having the hexagonal relief for the bolt head.
    2. Put a washer on.
      Push the bolt in only until the bolt just extends into the idler box and then place an M8 washer over the end of the bolt.
    3. Put on the first bearing.
      Advance the bolt a bit more and place one of the 608 bearings on it.
    4. Put on the second bearing.
      Repeat with another 608 bearing.
    5. A washer between the bearing and then a washer and nut to secure.
      Put an M8 washer on the end of the bolt.
    6. Aligning the second washer.
      Use a small screwdriver to align the washer so the bolt can go through the hole.
    7. The bolt in the relief.

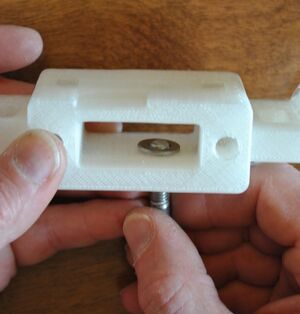

      Push the bolt into the hexagonal relief.
    8. Adding a washer and nut.
      Place a washer and finally a nut on the opposite end.
    9. Tightening the idler.

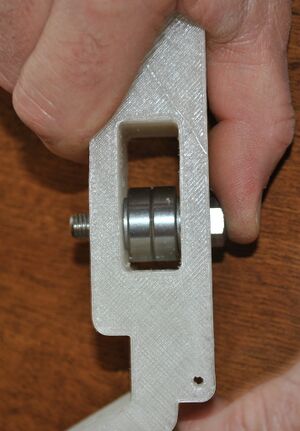

      Tighten the nut, thereby pulling the bolt all the way into the relief.
    10. Head of the bolt completely seated in idler end.
      .
  6. Repeat with remaining two idler ends.
  7. If linking boards (210mm x 42mm x 12mm) do not have pilot holes drilled in them and you wish them to, follow directions here before proceeding. Make sure the short (210mm) linking boards are being assembled to the idler ends!
  8. The linking board ready to be placed.
    The linking board in place.

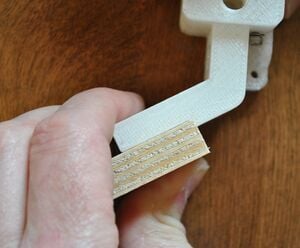

    With the idler end laying on the table, flanges down, position a linking board so that the board butts firmly against the tab stop in the printed idler end. The board and idler end must be flat against the table.
  9. Screwing the linking board to the idler.
    Start three #6 x 3/4” sheet metal screws into the tab and linking board but do not tighten until the position of the board is checked – it must be firmly butted against the stop on the idler mount and both idler mount and board flat on the work surface. Once in position, tighten the screws.
  10. Repeat with another linking board on the other side of the idler end. Make sure the last linking board is attached to the correct side of the idler end so that one of the idler ends isn't upside-down in the final assembly!
  11. The completed triangle.

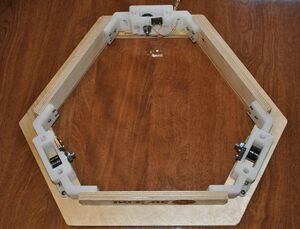

    Continue with remaining linking board and other two idler ends. When complete, the idler ends should form the apexes of an equilateral triangle and the whole assembly should lie flat on the table top without rocking, flanges down.
  12. Align the donut with the idler triangle.
    Attach the donut to the idler triangle.
    Select the side of the donut you wish to face outward and place that side down on the work surface. Place the triangle on the donut with the flanges facing it and line the two up. Note that the hexagon has two different length sides - the shorter sides mate with the idler ends, longer with linking boards. Secure the two together with six #6 x 3/4" screws.
  13. Prepare six M2 x 12mm screws with washers on them for securing the limit switches.
  14. Apply epoxy on limit switch pocket.
    Mix a small amount of the two part plastic epoxy and apply to the switch pockets in the idler ends. Do not apply to the switch as to avoid epoxy getting into moving parts of the switch.
  15. Limit switch epoxied and screwed into pocket.
    Place one of the assembled limit switches into an epoxied switch pocket with the switch's switch tab opening towards the guide rod (see picture). Working quickly, secure the switch with a pair of M2 screws. Repeat with remaining two switches.
  16. Pick one idler end and route wires neatly to it. Wires should take shortest path to the common idler end.
    Note that wires take shortest route to common idler end.
    Bring all of the limit switch wires to one idler end by the shortest route. There are small holes close to where the donut and idler end meet - pass the wires from two of the switches through these holes and rout along the linking board/donut to the third idler end. Pass the wires through the similar small holes into the interior of the idler end.
  17. Make a single twist in the two pairs of wires from the other idler ends.

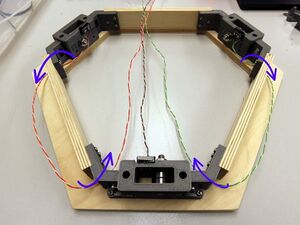

    Twist the pairs of wires from the other two idlers once to start the braid and keep it centered.
  18. Braid wires and pass through large hole on the left side of the idler end.
    Braid the wires. Rotate the idler assembly so the idler end with all the wires is facing you. Pass the braid through the large hole on the left side of the idler end and then through the loop on the exterior of the idler end.
Completed idler end assembly, bottom.
Completed idler end assembly, top.
