Sand Battery

Sand Battery Technology: A Promising Solution for Renewable Energy Storage^[1][edit | edit source]

Sand: abundant, inexpensive, available, Non-toxic
sand-based electrodes--> store &release energy
Use in small-scale residential systems to large-scale grid-level storage
Adv:
- High energy density
- Long cycle life
- Cycle stability
- Safety
- Potential for renewable energy storage
Sand-based electrodes--> potential in Li-ion & supercapacitors
Sand-Based Energy Storage Technologies:
- Thermal energy storage.
- Mechanical energy storage.
- Electrochemical energy storage.
Required materials:
- Sand
  - storage medium
  - should have high thermal conductivity
  - low thermal mass
  - withstand high temperatures
- Thermoelectric Generators
  - Thermal energy in sand to electric energy (discharge: for electricity generation, power industry, space heating)
  - selection: phase-change temperature & energy storage capacity.
- Electrodes/Heating Coil
  - Transfer thermal energy between sand & the thermoelectric generator
  - graphite or metal foils
- Insulation
  - Reduce heat loss in charge & discharge
  - Improves efficiency
- Heat Source:
  - charge the battery & heat the sand
  - Can be solar/ waste heat from industry/ renewable / nonrenewable thermal energy
- Container
  - Holds everything
  - withstand high temperatures & thermal stresses.
Design-->based on amount of required thermal energy & storage duration
Energy generation & storage:
- wind / solar --> electricity
- 30%-->immediately power local infrastructure
- 70%-->store in sand battery & heat to 600-1000°C
- weaker solar--> use the stored energy
Charge:
- Heat to sand--> increase temp --> until treshold-->full energy
- sand type & heat source--> different charge time
Discharge:
- sand--> expose to a heat sink or device that extracts the heat
- sand temp drop-->energy release as heat
- Sand type & heat sink temp-->different discharge time
Sand-battery type:
- Indirect Heat-Storing:
  - heat transfer fluid (transfer heat to & from the sand)
  - higher temp operation
  - large physical footprint
- Direct Heat-Storing
  - Direct contact with heat source & heat sink
  - lower temperatures operation
  - compact
- Thermochemical Heat-Storing
  - chemical reaction
  - store more energy
  - longer charge & discharg time
- Hybrid Heat-Storing
- Combine of direct & indirect
- higher energy density
- faster charge & discharge
Application
- Renewable Storage
- Heat & Cool
- Emergency Backup Power
Challenges
- Efficiency --> depends on material/ design/ operating condition
- operating temp
- scale up

Sand Battery: An Innovative Solution for Renewable Energy Storage (A Review)^[2][edit | edit source]

UAE --> aims to use 7% of its energy from renewable sources (specifically solar)--> but challenging -->UAE deserts sand
Sand composotion: silicon dioxide
Subzero temp areas -->sand-bed-based solar heat/thermal storing promissing
Dry sand-based TE--> High temp and high energy --> can be used in infrustructure of facilities like car parks
Obtainable Materials: sand and rocks
Installedcyclical storage structures: Germany, Canada, Turkey, Korea, the Netherlands, the United States, Finland, France, and Switzerland
Sand: store up to 1000 °C, zero mass loss, reduced ownership and maintenance costs, improved and stable energy exchange rates
sand medium: in a single basin solar--> increases the yearly mean of daily output by 23.8% (compared to no sand), hold the thermal energy for extended time, can be used during winter (when no solar available)
Principle:
- 30% of the renewable used, 70% stored in sand --> increase temp to 600-1000
Component of battery:
- steel casing--> sand & heat transmission piping
- External--> mechanical mechanisms, regulators, heat exchangers, fan
Operation:
- Charge
- Storage
- Discharge
Mechanism:
- Circulating hot air around sand --> Renewables control a resistance electric heater to increase the temp of the air near sand
- heat exchange tubing by a fan
- Dense insulation --> cover --> maintain temp
- Discharge: blow cool air--> heats up --> can steam water
- A COMPARISON OF DIFFERENT TES SYSTEMS TABLE AVAILABLE
Disadv:
- Limited Temperature Range (300-1000)
- Slow Charge
- Low Power Density
- Land Use
- Transportation
Recent:
- optimize particle size & distribution
Application
- grid-level storage
- portable devices
- off-grid power systems
- industrial heating
- building heating
- district heating
- agriculture
- mining systems

Uses of sands in solar thermal technologies^[3][edit | edit source]

rock or mineral particles-->silica (quartz), feldspar, carbonates, micas, amphiboles, pyroxenes--> 0.06 to 2 mm in diameter
6% of land surface area (6% of the Earth's land surface area in different regions)
- 2% North America
- over 30% Australia
- more than 45% Central Asia
$11 and $58 per metric ton
specific heat capacities: between 700 and 1000 J/kg◦C
Thermal conductivity depends on porosity, granularity, moisture content, & mineralogy
- less porous-->higher thermal conductivity
- Smaller particles--> less thermal conductivity
- saturated with water --> higher thermal conductivities
- Quartz thermal conductivity: 7.7 W/m.K
- other sand constituents thermal conductivities: from 2.5 to 3.6 W/m.K
non-toxic, non-corrosive, and non-flammable
Sand in solar
- Thermal Energy Storage
- Solar Absorption
- Heat Transfer
- heat insulationsuitable
- large surface area --> water evaporation as evaporative medium
Solar Distillation
- solar radiation --> obtain fresh water from impure water
- Limitation: low yield during the day and none at night
- with sand
  - fill the area beneath the basin liner, the basin itself /using containers like metallic boxes, cotton bags, or mud pots
  - maintain higher temperatures
  - increase the evaporative surface area through capillary action
  - fine, uniform sand better, black better, min thickness better, no water height above
Solar heating
- Solar thermal collectors + thermal energy storage media
- High quartz content, low porosity, & high moisture content
- Dry sand with low quartz content
Tank thermal energy storage
- Water: high specific heat capacity but Heat Loss --> Surrounding tanks with sands of low thermal conductivity; Sandy soil: lower heat capacity & thermal conductivity--> less heat loss from tanks compared to granite soil
- Require
  - Low specific heat capacity and thermal conductivity
  - Dry
  - sufficient depth
Aquifer Thermal Energy Storage (ATES)
- contain porous and permeable sand layers
- hot water in summer--> inject to the aquifer-->heat the soil and existed water--> extract the heat in winter, e.g. 72% recovery in Gassum Formation in Denmark
- Require
  - High heat capacity and thermal conductivity
  - High porosity and permeability
Borehole Thermal Energy Storage (BTES)
- heat to ground by U-pipe heat exchangers in summer-->extract in winter
- high quartz low porosity sand --> good over bentonite or gravel
- 50% more heat for a 50% longer duration compared to gravel --> 78% efficiency
- Belgium: yearly storage efficiency 70%
- Require
  - high thermal conductivity and heat storage capacity
Packed-Bed Thermal Energy Storage
- use packed-bed sand in insulated pits
- 64% to 91% savings
- 65–75% of domestic hot water needs
- Finland
- Sand --> filled in containers or pits, heat transfer fluid flow through the bed--> Heat transfer in low demand (summer) & extract in high demand
- Require
  - high thermal conductivity and specific heat capacity
Solar Greenhouse Enhancement
- thermal storage walls (Trombe walls) --> increase air and soil temperatures in greenhouses
- made of: blackened surface (absorbs solar radiation, transferring heat to the sand), sand, and insulation
- greenhouses with sand thermal storage walls
  - daytime air temp--> rise by 6.4°C above ambient, nighttime temp--> rise by 1.1°C
  - Soil temp-->depth of up to 8 cm--> rise by 6.4°C during the day and by 4°C at night
  - earlier flowering (by 14 days), earlier maturities (by 20 days), and higher yields (by 33.4%)
Solar Dryers
- solar radiation --> dry agricultural or food products
- quartz, sand, gravel, soil minerals, sandstone, rocks, limestone, granite stone, soil, clay, waste concrete, fire bricks, and water
- sand:
  - in drying chamber and the solar air heater--> reduce drying time & prevent the re-absorption of moisture at night
  - increase the absorber surface area & roughness
  - black-painted fine sand & high specific heat capacity & thermal conductivity
Solar cooking
Concentrating Solar Power (CSP)
- run a power block
Which sand?
- Impurities in quartz (should be below 2%) --> less energy density
- Clays, carbonates, and feldspars--> agglomeration, degradation / reduced specific heat capacity
  - Clays --> higher agglomeration at 600°C
  - Carbonates --> decarbonization below 800°C--> mass loss & altered grain-size distribution
  - Feldspars --> vitrify below 1200°C-->agglomeration --> impact on sand movement.
- Moderate cooling rates ~ 573°C required
- Below 1200°C --> quartz to cristobalite --> grain crack
Solar gasification
- gasification: carbonaceous materials (like cokes, coal, biomass) --> fuels or chemicals
- Conventional methods: burning some of these raw materials --> heat generation for gasification --> loss of material & CO2 emission
- solar--> heat the material (no need to burn materials)----> quarts: receive, transfer & store heat & is inert (no reaction with materials) --> higher fuel quality & less carbon emission
- mix the carbonaceous materials with quartz --> solar is absorbs and transfers heat by sand --> raise temp (1100) --> thermal decomposition of carbonaceous materials --> syngas (synthetic gas) production
- require:
  - High specific heat capacity and thermal conductivity
- Adiabatic Compressed Air Energy Storage
  - Conventional: Excess electricity compresses air --> stored in underground--> natural gas required for reheat when required
  - in sand: heat generated during compression --> store --> reheat compressed air when required by sand
    - Charge: Hot air--> through heat exchanger --> sand flow in apposite direction --> sand warm, compressed air cold
    - Discharge: cold compressed air--> through heat exchanger --> hot sand raise air temp
    - electric cycle efficiency 69%
    - High thermal conductivity and specific heat capacity
Solar Photovoltaic/Thermal Panels
- PV-->small fraction of radiation to electricity --> excess to heat --> damage
- can be store in sand --> Cools down Pannels & prevent overheat
- e.g: desert sand and phase change materials (e.g., n-octacosane) --> Desert sand better heat transfer
- most suitable: high thermal conductivity and specific heat capacity
Solar ponds:
- application:
  - Industrial Process Heat
  - Desalination
  - Space Heating
  - Power Generation
  - Greenhouse Heating
  - Salt Production
- Upper zone: low-salinity water--> insulator
- middle zone (Non-Convective Zone or Halocline) --> gradient of increasing salinity as depth increases --> density gradient--> convection currents prevention from forming -->traps heat in the lower layer
- Lower zone: high-salinity water-->Stores solar heat--> temp up to 85°C (185°F) or higher
- encasing sand in bottom and aournd lower layer --> reduce heat losses ( 69%) & store TE
- high thermal conductivity and specific heat capacity sand
Solar-Powered Refrigerators:
- two metal cylinders --> sand-filled space between saturated with water
- solar --> power evaporation for cooling --> effective, accessible, sustainable
Recommendation for research gaps:
Coatings for Quartz Sand--> improve absorption, high mechanical wear & high temperatures up to 1000°C
Relationship between the PCM solid fraction and the solar irradiance^[4]

Comparative CFD analysis of thermal energy storage materials in photovoltaic/thermal panels^[5][edit | edit source]

Desert sand (abundant, resistant to agglomeration, withstand high temperature) & silicon carbide --> enhanced heat transfer
This study: copper pipe containing a water stream in a rectangular phase change material (PCM) exposed to solar, Additional absorber Layer
under varying solar irradiance levels (ranging from 150 to 1,200 W/m2)
desert sand: temperature of the liquid at the outlet boundary and the maximum temperature of the TES matrix are closer --> better heat transfer

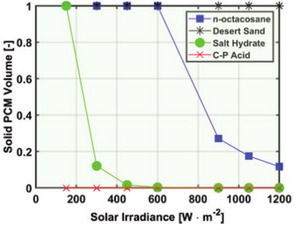

Relationship between the PCM solid fraction and the solar irradiance:
Desert sand retains heat -->4,500 seconds after heat flux switched off
n-octacosane retains for longer periods-->store and release heat over an extended period--> better for when heat release overnight required

Cost-effective Electro-Thermal Energy Storage to balance small scale renewable energy systems^[6][edit | edit source]

Assumes 100% conversion of electricity to heat
quantity of electricity (P) needed to charge the energy storage: P=mCpΔT/t
- m: mass of the thermal storage material
- Cp: average specific heat capacity
- ΔT: temperature difference during charging
- t: time taken
Thermal to electric = ηth*efficiency (efficiency in sand~85%)
Heat rate = Power output /Thermal to electric efficiency
Time for temperature decrease = Energy stored/ Heat rate

Summary comparison between different thermal storage materials for the new electric grid energy storage system. The efficiency is measured by (discharging/ charging *100)
Materials (1.5 mᶟ)	Tmin (◦C)	Tmax (◦C)	Charging (kWh)	Discharging (kWh)	Efficiency
Thermal Oil	180	410	192	84	44%
Molten Salt	200	500	372	118	32%
Sand	180	950	424	360	85%

The cost estimate of the ETES system with sand as the thermal storage material
System/material selection	Quantity of storage material(kg)	Unit price	Total capacity	Base load capacity	Price in ($)	Systemcomponents cost $	Total designcost $	Storage cost $/kWh
ETES/Sand	2446 kg	0.25 $/kg	359 kWh	88 kWh	672	24142	24814	69

Performance evaluation of a sand energy storage unit using response surface methodology^[7][edit | edit source]

Annual energy consumption: ~624,430 TWh
Carbon footprint from fossil fuels: 36.7 billion ton
Renewable energy demand in 2019: 6890.7 TWh
Expected increase by 2,493 TWh between 2022 and 2025
Types of TES Systems:
- Sensible Heat Storage: Simple and cost-effective.
- Latent Heat Storage: phase change materials.
- Thermoelectrical Storage: conversion between thermal and electrical energy
- Storage media:
  - rocks, water, oil, salt
  - Salt: Must be below 600°C
  - Concrete Bricks: daytime, under 500°C, Temperature changes during discharge--> cycle effectiveness reduction
  - SAND:
    - High Thermal Capacity
    - High Thermal Conductivity
    - cost-effective
    - Long-Term Stability
    - Non-Toxic and Environmentally Friendly
    - High-Temperature
    - Optimum size for heat transfer 2–3 mm (larger: heat transfer effectiveness reduction, smaller: Increase in pressure drop-->larger heat exchanger volume)
This Research:
- helical coil made of copper inserted inside a cylindrical tank
- Hot inlet fluid --> into the coil at temperatures up to 200°C
- Thermal Conductivity Measurement: KD2 Pro Decagon device with a TR1 single needle sensor type at 25°C
- Specific Heat Capacity Measurement: DSC-25, temperature range 25–200°C
- Specific Gravity Measurement: 1 kg of desert and beach sand, dried to constant mass (at 110 ± 5 ◦C) then add 6% moisture--> dry for 15-19 h.
Experimental results:
- XRF
  - Desert sand:13 elements, calcium 60.96%.
  - Beach sand: 11 elements, calcium 86.9%.
- specific heat capacity
  - increase with temperature
  - Cp for desert-->higher
  - dehydration of calcium hydroxide formed after heat treatment at 200°C
- Density
  - Beach sand: denser
- scenario for simulation:
  - Hot oil--> at 100°C & 0.01 m/s velocity--> heat transfer to 25°C sand, oil temperature decrease--> sand temperature and stored energy increase
  - oil temp change --> increase sand temp and stored thermal energy
  - oil velocity and coil turns increase--> stored energy increase
  - total stored energy per kg of sand-->6.348 kJ/kg after an 8h charging .
  - pressure drop -->71.4 Pa
  - desert sand Thermal conductivity -->higher than beach sand by 1.77%
  - Thermal resistivity of beach sand -->29.3% higher compared to desert sand

Improved effective thermal conductivity of sand bed in thermal energy storage systems^[8][edit | edit source]

Introduction:
- TES--> substitute for lithium-ion batteries in stationary electric-grid storage
- Sand--> high thermal tolerance (melting point around 1700°C)
- wide temp range-->Enhanced Carnot cycle efficiencies
- sand High specific heat capacity --> high energy density BUT granular form & point contact between grains -->low thermal conductivity
- Coating of quartz sand --> improve solar absorption & thermal stability & enhancing energy storage efficiency by 60% to 80% compared to raw sand
- thermal conductivity of bentonite sand--> increase by add granite powder
- common methods-->Direct solar heating and heating by fluidisation (Circulating heat transfer fluids through heat exchangers in sand-packed beds)
- Mixing different heat storage materials--> improve storage properties
- Waste material streams-->economical materials option
  - cut metal scrap from Metal workshops --> circular economy
This research:
- Rectangular aluminium container (height 380 mm, length 230 mm, width 380 mm) --> investigate thermal properties of sand bed
- Two tubular-type resistance heaters (height 298 mm, width 309 mm, diameter 50 mm)--> 95 mm apart in the center of the box--> 2 kW On/Off control box & temp regulation up to 1000 °C
- K-type thermocouples --> between heaters (45 ±0.7 mm from each heater) and 30 mm away from heaters
- Sand bed -->exposed to air (T below 26 °C) without insulation
- Combination of sand and metallic by-products (enhance thermal conductivity)
  - Brown Silica: silica (SiO2), grain size 0.06 to 0.2 mm, melting point 1713 °C, specific heat capacity 703 J/(kg⋅K), thermal conductivity 0.2 to 0.7 W/(m⋅K), bulk density 1800 kg/m3
  - aluminium:15 to 20 mm long, 0.5 mm thick, 1.5 mm wide, melting point 660 °C, specific heat 897 J/(kg⋅K), thermal conductivity 205 W/(m⋅K), density 2712 kg/m3
  - brass:diameter 0.25 mm, length 4.5 mm, melting temperatures 900 to 940 °C, specific heat 380 J/(kg⋅K), thermal conductivity 113 W/(m⋅K), density 8430 to 8730 kg/m3
  - mixed metal chips: 90% steel, 10% aluminium/ length 10-15 mm, thickness 0.5 mm, breadth 1.5 mm/ Tm: 1370-1540 °C/ specific heat 490 J/(kg⋅K)/ thermal conductivity 50-70 W/(m⋅K) (varies by alloy)/ density: 7850 kg/m³
- T4: between wall and electric heater/ T3: between two electric heaters
- surface temperature reaches 500 °C within 30 min
- T4: heat faster than T3 in first 75 min (17.5 mm closer to heat source) & temperature constant at 350 °C after 3 h & rapid temperature decline outside heating elements
- T3: hotter than T4 after 80 min, equals surface temperature of heaters after 7 h & less rapid heat loss to environment & heat trap/ low thermal conductivity, high heat capacity of sand --> Terminal lag in T3
- Sand conductivity: 0.114 W/(m⋅K)
- Simulated charging time: five hours
- Brass-sand layer: highest effective thermal conductivity/ higher density and less porous structure--> lower thermal conductivity than aluminium
- Aluminium chips:
  - More effective in uniform mixture: high thermal conductivity
  - 20% aluminium: heat rate 1.7 times of pure sand & increases stable T4 temperature --> higher effective thermal conductivity
  - 10% and 5% aluminium heat rates 1.36 times and 1.18 times of pure sand
  - Higher aluminium:increased percolation & more interconnections --> facilitate heat transfer
  - Lower chip concentrations: isolation of chips, fewer conductive paths, & lower thermal conductivity
  - enhances overall temperature gradient of sand bed
- mix-metal chips--> lower performance: higher steel content (lower thermal conductivity)
- temperature outside thermocouples: metal composite--> Higher temperature than pure sand
- Metallic chips: easy heat travel--> more storage
- Commercial scrap metal prices in Finland--> Aluminium: 0.7 & Brass: 3.1 & Stainless steel: 0.7

From waste to value: Utilising waste foundry sand in thermal energy storage as a matrix material in composites^[9][edit | edit source]

Introduction:
- Waste foundry sand (WFS) by-product of metal casting processes
- WFS characteristics: ceramic composition, density, particle size (0.15 mm < D < 0.6 mm), specific surface area
- WFS recycling pathway: key material for composite phase change materials to capture, store, reuse waste heat
This research:
- Materials:
  - NaNO3, natural materials including clay, fully recyclable, Bentonite in sodium form, waste foundry sand (CPCM matrix material, predominant component: SiO2 at 87.91%, secondary components: Al2O3 at 4.7%, Fe2O3 at 0.94%), Additive X (?)
- Fabrication:
  - Comminution with mortar and pestle (85–95% between 0.6 mm and 0.15 mm uniform grain size distribution)
  - Hand-stirring mixture
  - Shaping into 13 mm pellets under 60 MPa pressure for 2 min
  - Sintering at 400 °C, 5 °C/min in high-temp
  - Cooling to room tempe for shape-stable structure
- Poor cohesion at 70–30 (WFS-salt) mass ratio -->instability
- Additive X (?):
  - Thixotropic properties form gel-like matrix with water--> improving WFS particle binding
  - Increases CPCM resistance to stresses during phase change process
- Tests:
  - Sand grain density: Helium-based pycnometer, 2.51 ± 0.06 g/cm³
  - Bulk density: Mass and volume (dimensions) of individual pellets, Porosity deduced from density ratio
  - Latent heat, melting point, specific heat capacity: DSC: Temperature range: 20 to 400 °C, ramping speed: 10 °C/min, Aluminum crucibles, ambient air environment, gas flow rate: 100 ml/min, sapphire method for specific heat
  - Thermal conductivity and diffusivity: Laser Flash Technique, Level sample surfaces, graphite spray coatingAirflow setting: 100 ml/min, Thermal conductivity formula: λ = a(T)ρ(T)Cp(T)
  - TGA: Sample weight: ~10 mg, platinum crucible, Temperature range: 25 to 500 °C, heating rate: 10 °C/min, ambient air
  - Microstructure and pore size distribution: X-ray nano-CT, Cylindrical samples: φ 2 × 15 mm, Voltage: 95 kV, current: 150 μA, pixel resolution: 9.5 μm, Projection images at 0.1° intervals, 180° rotation, Data analysis: Recon software, CTan software
  - Coefficient of thermal expansion: Optical dilatometer, Cylindrical samples: ~13 mm diameter, Heating: ambient temperature to 500 °C, rate: 5 K/min, air environment
  - Compressive strength
  - Thermal cycling protocol: Temperature increase to 400 °C, hold for 30 minutes, Temperature decrease to 270 °C, hold for 10 minutes,Total of 48 cycles, Structural resilience and thermal efficacy assessment of WFS-salt CPCMs
  - ..... (discussion)
  - Energy storage density: 628 ± 27 kJ/kg for Na60, 567 ± 43 kJ/kg for Na55
  - Average thermal conductivity: 24% higher for Na60 (1.38 W/mK) than Na55 (1.08 W/mK), due to higher porosity of Na55
  - Compressive strength: 141 MPa for Na60, 105 MPa for Na55, influenced by porosity and pore size
  - Larger porosity beneficial for CTE of CPCM

Heat Storing Sand Battery^[10][edit | edit source]

Desert sand can store thermal energy up to 1000 ℃
400 ℃ higher than molten salt
Molten salt:
- maintenance to avoid plugging
- External heat needed to maintain temp above 260 °C
- 28,000 tons --> for 7.5 hours of storage
- 25.2 million dollars for storage medium
This research:
- Electric heater chosen as heat input
- Heat by heater -->to heat exchanger through Heat Transfer Fluid (oil)
- Oil -->in an oil tank, pumped through pipes to heat exchanger
- Temp sensors--> monitor sand temp change
- Charging: Sand heated to desired temperature (150 °C)
- Storing: sand thermal energy retention over time
- Discharging:
  - Cold oil -->through pipes to absorb sand heat
  - Thermoelectric generator--> thermal energy to electrical energy

What Is a ‘Sand Battery’?^[11][edit | edit source]

First commercial sand battery: In Kankaanpää, Western Finland (max temp:600 ℃, can be higher though)--> integrated into a district heating network operated by Vatajankoski (Green energy supplier)
- In residential and commercial buildings (homes & swimming pool)
Structure:
- Insulated silo of steel housing filled with sand & heat transfer pipes.
- Automation components, valves, a fan, & heat exchanger or steam generator.
Heating:
- Electricity from the grid or local production from wind and solar.
- Charged during periods of clean and cheap electricity availability.
- Electrical energy -->heat air with electrical resistors --> via a closed-loop air-pipe--> circulate it through heat transfer piping--> to heat storage
Extraction:
- Blowing cool air through pipes--> heat up
- used to convert water into process steam / heat district heating water in an air-to-water heat exchanger.
Stay hot for months, typically charged and discharged in 2-week cycles
Best range of use when charged and discharged 20 to 200 times per year
In "Polar night energy":
- 600 °C, 10GWh, 100MW
- 36% of industrial heating demand can be provided by sand battery (now is relying on oil and gas)
- can save 100 Mt/year carbon mono oxide in 2030
30% of solar/wind--> direct use, 70% stored as heat, less than 10% need for external energy for the whole year

Page data
Authors	Maryam Mottaghi
License	CC-BY-SA-4.0
Language	English (en)
Related	subpages, pages link here
Impact	page views
Created	May 14, 2024 by Maryam Mottaghi
Modified	May 28, 2024 by StandardWikitext bot
Cite as	Maryam Mottaghi (2024). "Sand Battery". Appropedia. Retrieved May 28, 2024.
API queries	basic, semantic, html, files, more

[1] Sand Battery Technology: A Promising Solution for Renewable Energy Storage

[2] Sand Battery: An Innovative Solution for Renewable Energy Storage (A Review)

[3] Uses of sands in solar thermal technologies

[4] ttp://dx.doi.org/10.1016/B978-0-12-818634-3.50133-8

[5] Comparative CFD analysis of thermal energy storage materials in photovoltaic/thermal panels

[6] Cost-effective Electro-Thermal Energy Storage to balance small scale renewable energy systems

[7] Performance evaluation of a sand energy storage unit using response surface methodology

[8] Improved effective thermal conductivity of sand bed in thermal energy storage systems

[9] From waste to value: Utilising waste foundry sand in thermal energy storage as a matrix material in composites

[10] Heat Storing Sand Battery

[11] ttps://polarnightenergy.fi/sand-battery

[1]

[2]

[3]

[4]

[5]

[6]

[7]

[8]

[9]

[10]

[11]

Sand Battery

Sand Battery Technology: A Promising Solution for Renewable Energy Storage[1][edit | edit source]

Sand Battery: An Innovative Solution for Renewable Energy Storage (A Review)[2][edit | edit source]

Uses of sands in solar thermal technologies[3][edit | edit source]

Comparative CFD analysis of thermal energy storage materials in photovoltaic/thermal panels[5][edit | edit source]

Cost-effective Electro-Thermal Energy Storage to balance small scale renewable energy systems[6][edit | edit source]

Performance evaluation of a sand energy storage unit using response surface methodology[7][edit | edit source]

Improved effective thermal conductivity of sand bed in thermal energy storage systems[8][edit | edit source]

From waste to value: Utilising waste foundry sand in thermal energy storage as a matrix material in composites[9][edit | edit source]

Heat Storing Sand Battery[10][edit | edit source]

What Is a ‘Sand Battery’?[11][edit | edit source]

Sand Battery Technology: A Promising Solution for Renewable Energy Storage^[1][edit | edit source]

Sand Battery: An Innovative Solution for Renewable Energy Storage (A Review)^[2][edit | edit source]

Uses of sands in solar thermal technologies^[3][edit | edit source]

Comparative CFD analysis of thermal energy storage materials in photovoltaic/thermal panels^[5][edit | edit source]

Cost-effective Electro-Thermal Energy Storage to balance small scale renewable energy systems^[6][edit | edit source]

Performance evaluation of a sand energy storage unit using response surface methodology^[7][edit | edit source]

Improved effective thermal conductivity of sand bed in thermal energy storage systems^[8][edit | edit source]

From waste to value: Utilising waste foundry sand in thermal energy storage as a matrix material in composites^[9][edit | edit source]

Heat Storing Sand Battery^[10][edit | edit source]

What Is a ‘Sand Battery’?^[11][edit | edit source]
