Paper-Clay Retaining Wall

From Appropedia
Jump to: navigation, search

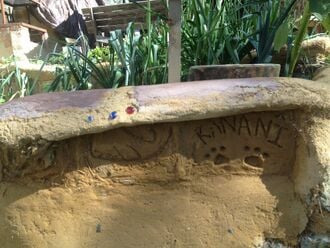

View of Clay Bricks and chicken wire overhang covered in Mortar.

Using local materials such as clay, recycled paper, river sand and straw a series of test brick were made by the Green Building class at CCAT in the spring of 2013. There were multiple different percent combinations of these various materials used. Given that the final bricks where to construct a wall that would retain soil durability was the #1 desired trait in deciding the final brick composition. After they were given a week to dry is was established that too much sand and/or straw made the bricks crumble and that in the most climate of the Pacific north west,water used for mixing was going to want to be kept to a minimum in order for the brick to dry in a reasonable amount of time.

It was decided that the best combination to construct the bricks was 40% paper 30% clay and 30% sand. This mixture was then poured into the molds to dry.


Methods and Construction[edit]

The Adobe mortar was composed of mostly clay with, some manure for a binding agent and straw that served as the fiber to hold the mixture together along with a small amount of cement that was added in at the very end. This was done so that “dancing mixers” feet were not exposed to the cement for the majority of the mixing. The mixing was done by stomping on top of the clay and organic matter with bare feet. During which you would slowly shake out straw out of your hands. The mixing was done on a tarp that was frequently folded over on its self to help with the even combining of materials. If there were any bunches of straw they were pulled apart and mixed in to create as homogeneous of a motor as possible. The cement was also added in to give the wall an extended life span given that the bricks themselves will break down easily in the weather. That being said there was a chicken wire top that was placed on top of the bricks with some overhang to create an awning for the bricks and then the mortar was had rubbed into the wire frame.

CCAT Natural Wall Construction

Project goals[edit]

The object of the project was to make a two teared terrace wall out of local, natural and affordable materials that could be completed by 7 students over the the cores of the 10 week class. The goal was to work with the slope of the land to make a gardening bed for the organic gardening class to grow vegetables in.

Pictures[edit]

Describe your design here.  ??

Fig 1: Wall over 6 months after construction was compleate.
Fig 2: Squishing/Hand mixing clay and sand.
Fig 3: Sifting the largest rocks out and braking up clay.
Fig 4: Constructing the frames.
Fig 5:Placing of bricks and applying mortar.
Fig 6: Side view: Urbenite inset to ground and covered fixed with mortar.
Fig 7: Blending of paper and water with specialized extended cutting bit.
Fig 8:Mixing the mortar with a native dance.

Materials Used[edit]

Item Location Found
Clay Mound on HSU Campus
Paper Recycled Lumberjack Newspapers and shredded paper from BSS on HSU Campus
Sand Mad River
Chicken Wire CCAT Green Shed
Wooded 2x4 CCAT Scrap Pile
Manure Tyler's grass grazing cattle
Straw Local Farm $6
Total Cost of Project $6 Plus over 170 worker hours

Tip Learned along the way[edit]

  1. In order to have enough water to cut up and mix the paper properly, more water then desired was originally used and then pressed out of the paper by hand using a fine grained screen.
  2. Originally these brick where placed in an outside yurt and then after a week moved inside by a fire to promote expedient drying.
  3. Pieced together urbanite and the clay adobe mortar where used for the side walls of the garden beds. This was done to work with the inclining slope as well as the desire to keep the side walls of the gardening bed narrow for ease of planning and harvesting.
  4. It was discovered that cat tails that which are rather abundant in the local marsh make an excellent binding agent instead of manure if desired. However due to how much would be needed and the time it would take to collect it; it was decided that cattle by product was the best material for this project.

Below is a well detailed link to a project that constructed bricks in a similar way with some detailed pictures of the molding frames. However this design used smaller bricks then the ones used in this current design.

CCAT natural wall construction
